Bolt-X
Reusable Bolt-X is 37 templates in one! No need to buy multiple pole base templates to get the job done. With the Bolt-X template, it will cover any size footing base, all in one template at a very affordable price.

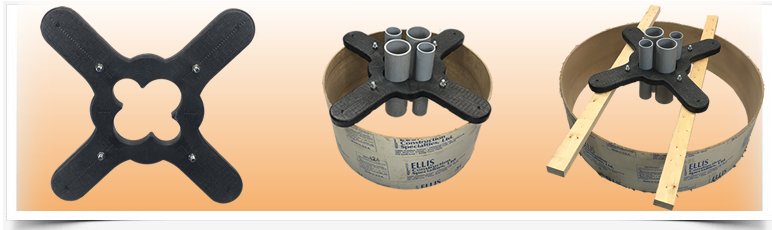

BOLT- X REUSABLE TEMPLATEWill Work on Concrete Form Tubes (All Sizes) Holds 4 anchor bolts , diameter 1/4" to 1 1/2" Pre-measured Bolt circle diameter 7 1/2" to 25" Center Opening (Clover Leaf Style) Will Take Up to 2x3” and 2x2” Conduits Bolt-X can be used on any round or square form. The Bolt-X is provided with drill divots for correct and easy selection of bolt patterns. We selected this method to prevent misalignment in the field. If using a template with slots, not only do you have to align for the correct bolt pattern, you also have to keep the bolts centered in the slot. In our experience, these templates are assembled near the job trailers then transported, which when loaded and unloaded can possibly move them and unknowingly create the wrong placement. The Bolt-X has a zero margin of error when the correct hole is drilled for the bolt and bolt circle. When placing the steel cage, use rebar boots on only three of the vertical rebar to keep it 3 " off the bottom of the hole. Hanging the cage is simply not needed and the boots keep the cage at the precise placement. |
